Description

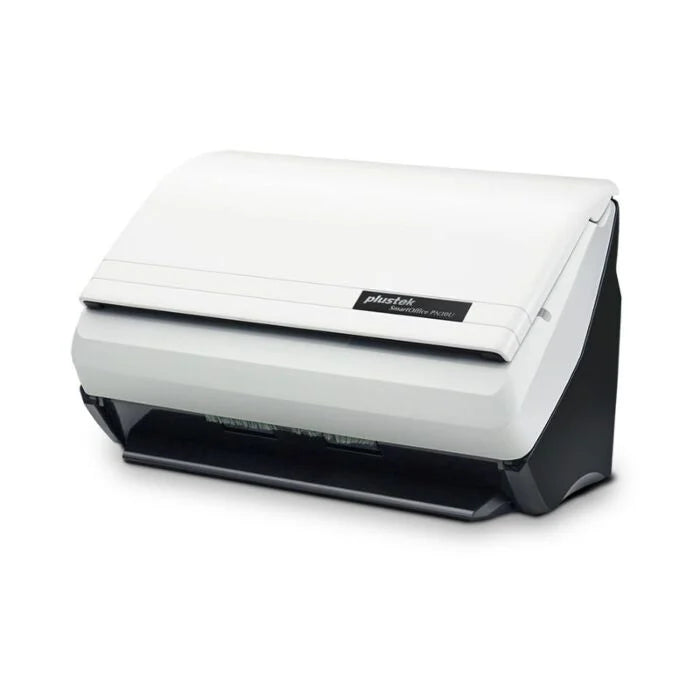

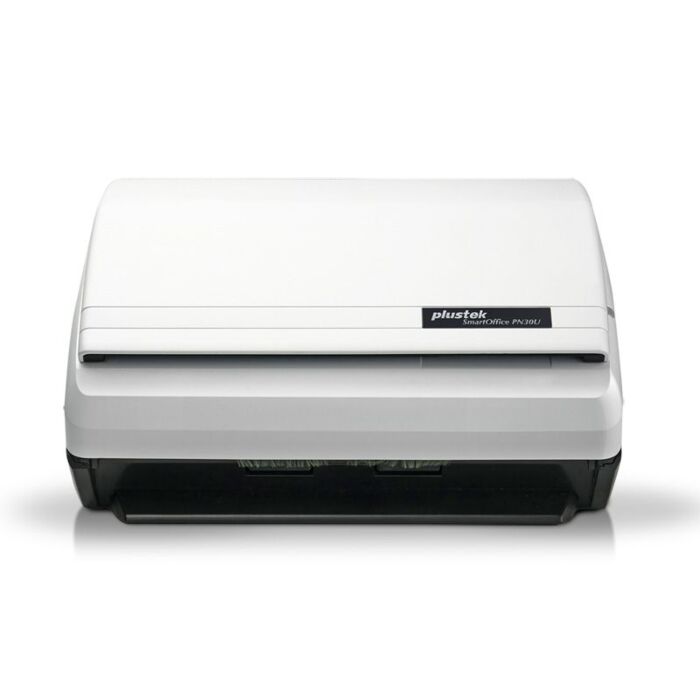

Plustek Smart Office PN30U Sheet-Feed A3 Scanner
Experience enterprise-level scanning performance with the Plustek Smart Office PN30U Sheet-Feed A3 Scanner. Designed for high-volume document processing, this professional scanner delivers exceptional speed, quality, and reliability. With dual CIS sensors, network connectivity, and a massive 4,000-sheet daily duty cycle, it's the ultimate solution for demanding business environments.
Key Features
- Ultra-Fast Scanning: 30 ppm / 60 ipm for maximum productivity
- 50-Sheet ADF Capacity: Process large batches efficiently
- A3 Size Support: Scan documents up to 220 x 5080 mm (8.66" x 200")
- Dual CIS Sensors: Superior image quality with dual sensor technology
- Network Connectivity: USB 2.0 and RJ45 LAN (Windows)
- 600 x 1200 DPI Resolution: High optical resolution for crisp scans
- 4,000 Sheets Daily Duty: Built for heavy-duty professional use
- Multi-Feed Detection: Ultrasonic technology prevents document jams
- Built-in OCR: Powered by ABBYY FineReader for text recognition
- 12 Customizable Functions: 3 buttons + 9 function keys
- Long Roller Life: 300,000 scans roller lifetime
- Cross-Platform Support: Windows and Mac OS compatible
Technical Specifications
- Model: Smart Office PN30U
- Brand: Plustek
- Type: Sheet-Feed A3 Scanner
- Image Sensor: CIS x 2 (Dual sensors)
- Light Source: LED
- Optical Resolution: 600 dpi
- Hardware Resolution: 600 x 600 dpi
- Scan Modes: Color: 48-bit Input, 24-bit Output | Grayscale: 16-bit Input, 8-bit Output | B/W: 1-bit
- ADF Capacity: 50 sheets (A4/Letter, 70 g/㎡) | 20 sheets (Business Cards) | Plastic cards up to 1.2mm
- Scanning Speed: 30 ppm / 60 ipm (Color, Grayscale, B/W at 200 & 300 dpi, A4)
- Scanning Area: Maximum: 216 x 5080 mm (8.5" x 200") | Minimum: 13.2 x 13.2 mm (0.52" x 0.52")
- Acceptable Paper Sizes: Maximum: 220 x 5080 mm (8.66" x 200") | Minimum: 63.5 x 50.8 mm (2.5" x 2")
- Paper Weight: 50 to 105 g/㎡ (14 to 28 Lbs)
- Multi-feed Detection: Ultrasonic technology
- Daily Duty Scan: 4,000 sheets
- Roller Lifetime: 300,000 scans
- Pad Lifetime: 50,000 scans
- Action Buttons: 3 Buttons (Up, Down, Scan) + 9 Function Keys - All Customizable
- Power Supply: 24 Vdc / 0.75 A
- Interface: USB 2.0, RJ45 LAN (Windows only)
- Net Weight: 1.66 kg (3.66 lbs)
- Dimensions: 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")
- Protocol: TWAIN Compliant
System Requirements
- Windows XP / Vista / 7 / 8 / 10
- Mac OS X 10.8.x to 11.2.x
- Pentium® IV 2.4 GHz processor
- DVD-ROM Drive
- One available USB 2.0 Port
- 1GB RAM (2GB or higher recommended)
- 2GB free HDD space (3GB or larger recommended)
Bundled Software
- Plustek DocAction
- Plustek DocTWAIN
- Plustek MacAction
- Plustek ICA
- Scanner Search tool
- Plustek OCR (Windows) - Powered by ABBYY® FineReader®
- Plustek DocOCR (Mac)
Specifications
- Wireless: No
- Color: White
- Warranty: 1 Year Brand Warranty
