Description

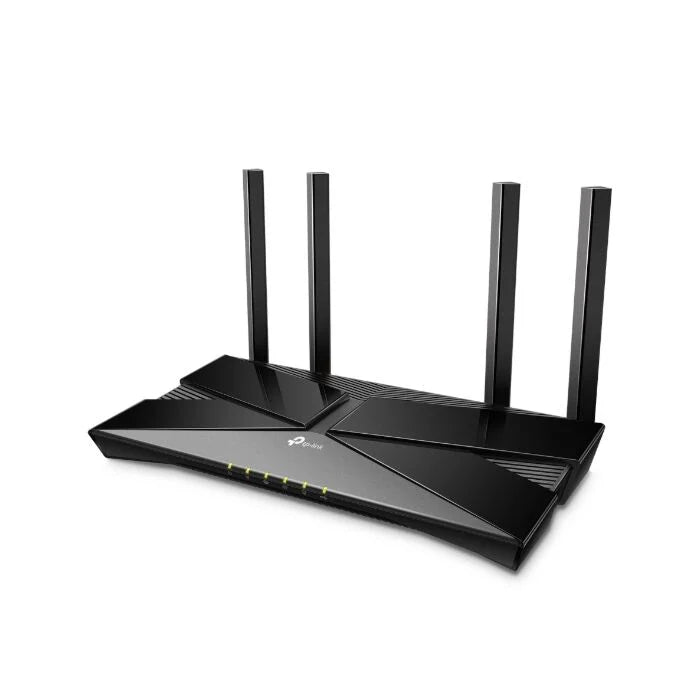

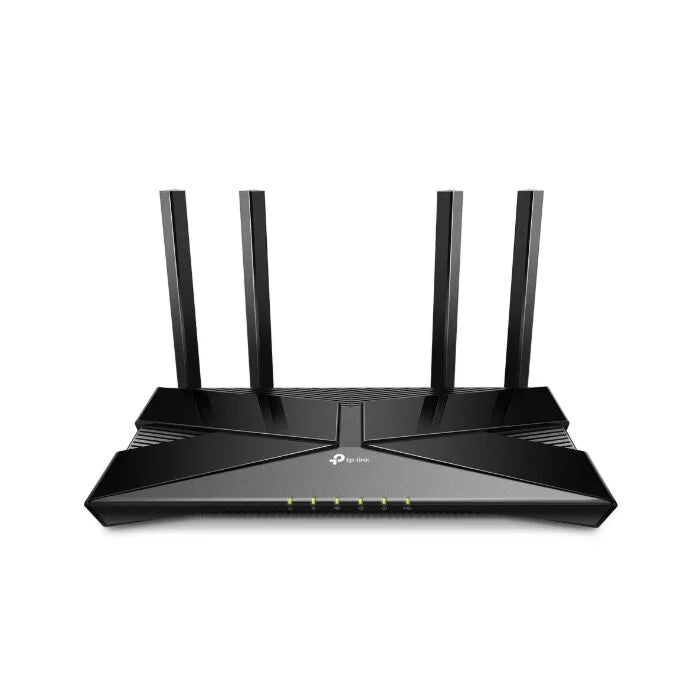

TP-Link AX1800 Archer AX20 Dual-Band Wi-Fi 6 Router
Experience next-generation WiFi with the TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router. Featuring cutting-edge Wi-Fi 6 technology, dual-core CPU, gigabit ethernet ports, USB 2.0 port, OFDMA, MU-MIMO, VPN server/client support, and OneMesh compatibility, this router delivers blazing-fast speeds and exceptional performance for modern smart homes.
Key Features
- Wi-Fi 6 Technology: Next-generation 802.11ax standard
- AX1800 WiFi Speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Dual-Core CPU: Powerful processor for smooth performance
- Gigabit Ethernet Ports: 1 WAN + 4 LAN for ultra-fast wired connections
- USB 2.0 Port: Share files, media, and Time Machine backups
- OFDMA Technology: Simultaneously communicates with multiple Wi-Fi 6 clients
- 4 High-Performance Antennas: Extended coverage for 2-3 bedroom houses
- VPN Server & Client: OpenVPN, PPTP, L2TP support
- OneMesh™ Supported: Create flexible whole-home mesh network
- WPA3 Security: Latest WiFi encryption standard
- Beamforming & High-Power FEM: Strengthened signal coverage
- 4 Streams: Connect devices to more bandwidth
Wireless Specifications
- Standards: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)
- WiFi Speeds: AX1800 (1201 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz)
- WiFi Range: 2-3 Bedroom Houses
- Antennas: 4× Fixed High-Performance Antennas
- Beamforming: Yes
- High-Power FEM: Yes (strengthened signal coverage)
- WiFi Capacity: High (Dual-Band, OFDMA, Airtime Fairness, 4 Streams)
- Working Modes: Router Mode, Access Point Mode
Hardware Specifications
- Processor: Dual-Core CPU (V3)
- Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
- USB Support: 1× USB 2.0 Port (NTFS, exFAT, HFS+, FAT32)
- USB Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
- Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
- Power: V1/V2: 12V ⎓ 1.5A | V3: 12V ⎓ 2.0A
- Dimensions: 260.2 × 135.0 × 38.6 mm
Security Features
- WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
- Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
- Guest Network: 1× 5 GHz + 1× 2.4 GHz Guest Networks
- VPN Server: OpenVPN, PPTP, L2TP
- VPN Client: OpenVPN, PPTP, L2TP
Software Features
- Protocols: IPv4, IPv6
- OneMesh™: Supported (create whole-home mesh network)
- Parental Controls: URL Filtering, Time Controls
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
- NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
- DHCP: Server, Client List, Address Reservation
- DDNS: TP-Link, NO-IP, DynDNS
- Management: Tether App, Webpage
Technical Specifications
- Model: Archer AX20
- Brand: TP-Link
- WiFi Transmission Power: CE: <20dBm (2.4 GHz), <23dBm (5 GHz) | FCC: <30dBm
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Certifications: FCC, CE, RoHS
- Package Contents: Router, Power Adapter, Ethernet Cable, Quick Guide
- Color: Black
- Warranty: Brand Warranty
Perfect For
- 2-3 bedroom homes
- Wi-Fi 6 device users
- 4K/8K streaming and gaming
- Smart home ecosystems
- VPN users (server & client)
- OneMesh whole-home WiFi
- USB storage and media sharing
- Multiple device households
