Description

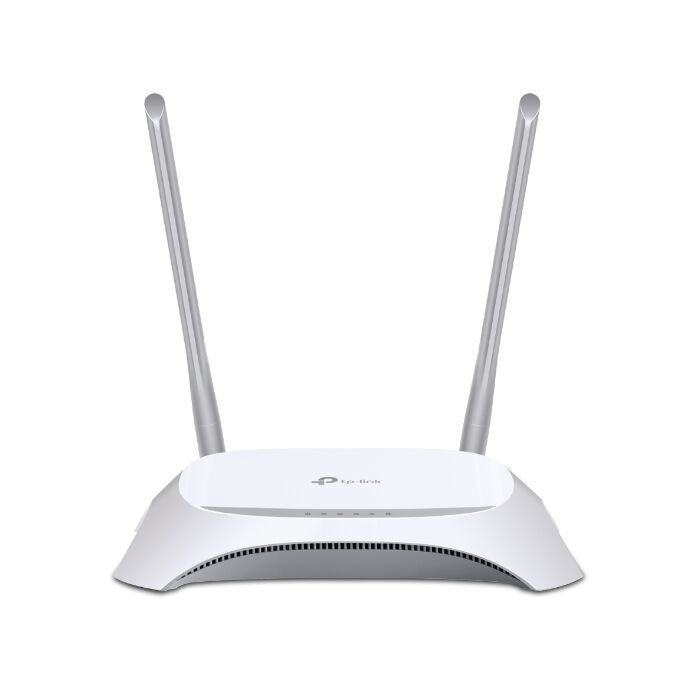

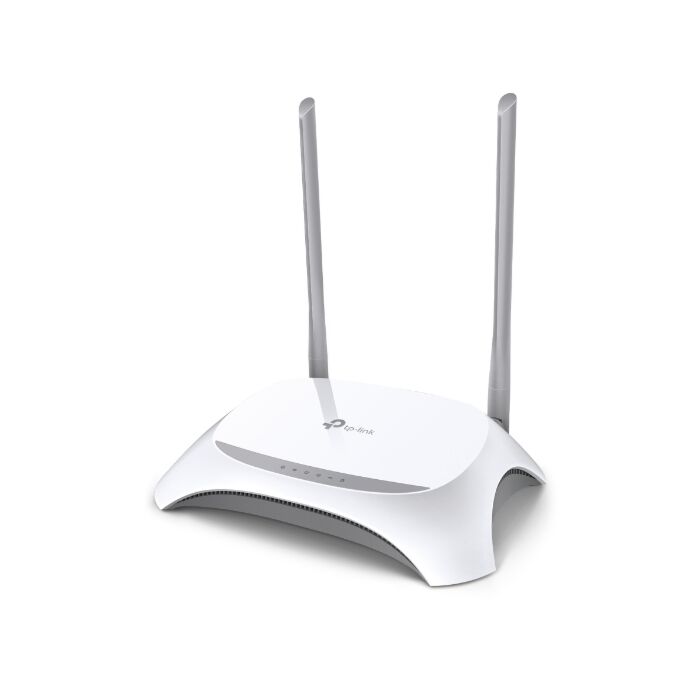

TP-Link TL-MR3420 3G/4G Wireless Network Router
Experience versatile internet connectivity with the TP-Link TL-MR3420 3G/4G Wireless Network Router. Featuring USB port for 3G/4G modem support, wireless N300 speeds, detachable antennas, and comprehensive security features, this router delivers reliable internet access through both traditional broadband and mobile networks, perfect for areas with limited wired internet options.
Key Features
- 3G/4G USB Modem Support: Share mobile internet via USB modem
- USB 2.0 Port: Compatible with LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO modems
- N300 WiFi Speed: 300 Mbps wireless performance
- Dual Internet Options: WAN port for traditional broadband or USB for mobile internet
- 2 Detachable Antennas: 5dBi high-gain antennas (V1 & V2)
- 4 LAN Ports: Wired connections for devices
- WPS Button: Easy wireless security setup
- Wireless On/Off Switch: Convenient WiFi control
- Comprehensive Security: NAT Firewall, SPI Firewall, MAC/IP filtering
- Web-Based Management: Easy configuration and firmware upgrade
- Budget-Friendly: Affordable 3G/4G router solution
- Compact Design: Space-saving white finish
Hardware Specifications
- Interface: 1× USB 2.0 Port (for 3G/4G modem)
- Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
- Auto-Negotiation: Yes (auto-MDI/MDIX)
- Buttons: WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button
- Power Supply: 9V / 0.85A
- Dimensions: 204 × 138 × 44 mm (8 × 5.4 × 1.7 in)
- Antenna Type: V1 & V2: Detachable Reverse SMA | V3 & V4: Undetachable
- Antenna Gain: 2× 5dBi
Wireless Specifications
- Standards: IEEE 802.11b/g/n
- Frequency: 2.4-2.4835 GHz
- WiFi Speed: N300 (300 Mbps)
- Transmit Power: <20dBm
- Wireless Security: 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
3G/4G Modem Compatibility
- Supported Technologies: LTE, HSPA+, HSUPA, HSDPA, UMTS, EVDO
- Connection: USB 2.0 Port
- Modem Type: USB modems from major carriers
Security Features
- Firewall: NAT Firewall, SPI Firewall
- Filtering: MAC / IP / Packet / Application / URL Filtering
- Protection: Denial of Service (DoS), SYN Flooding, Ping of Death
Software Features
- Management: Web-Based Configuration (HTTP), Web-Based Firmware Upgrade
- System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX, Linux
Technical Specifications
- Model: TL-MR3420
- Brand: TP-Link
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Certifications: CE, FCC, RoHS
- Package Contents: Router, 2 Antennas, Power Supply, Ethernet Cable, Resource CD, Quick Guide
- Color: White
- Warranty: Brand Warranty
Perfect For
- Areas with limited wired internet
- Backup internet connection
- Mobile internet users
- Rural locations
- Temporary setups
- 3G/4G USB modem sharing
- Small offices
- Budget-conscious users
